Product Details
Place of Origin: China
Brand Name: Zhanlu
Model Number: ( B3 )100CrMnSi6
Payment & Shipping Terms
Minimum Order Quantity: Consultation
Price: Consultation
Packaging Details: Conventional packaging
Delivery Time: 5-8Workdays
Payment Terms: L/C, T/T
Supply Ability: Consulting service
Name: |
( B3 )100CrMnSi6-4 Bearing Steel |
Diameter: |
6.0mm-1200mm |
Length: |
2.5m-10m |
Type: |
Round Bar |
Application: |
Bearing Ring Steel Ball |
Standard: |
(B3)100CrMnSi6-4 |
Name: |
( B3 )100CrMnSi6-4 Bearing Steel |
Diameter: |
6.0mm-1200mm |
Length: |
2.5m-10m |
Type: |
Round Bar |
Application: |
Bearing Ring Steel Ball |
Standard: |
(B3)100CrMnSi6-4 |
100CrMnSi6-4 bearing steel is based on GCr15 steel. The content of Si and Mn is appropriately increased to improve its hardenability and elastic limit, and its wear resistance is also better than GCr15. The applicable size range for manufacturing rolling element is larger than GCr15, and it is mainly used for manufacturing bearing ring steel ball with wall thickness>12mm and outer diameter>280mm with diameter>50mm; Tapered, cylindrical and spherical rollers with diameters>22mm and all sizes.

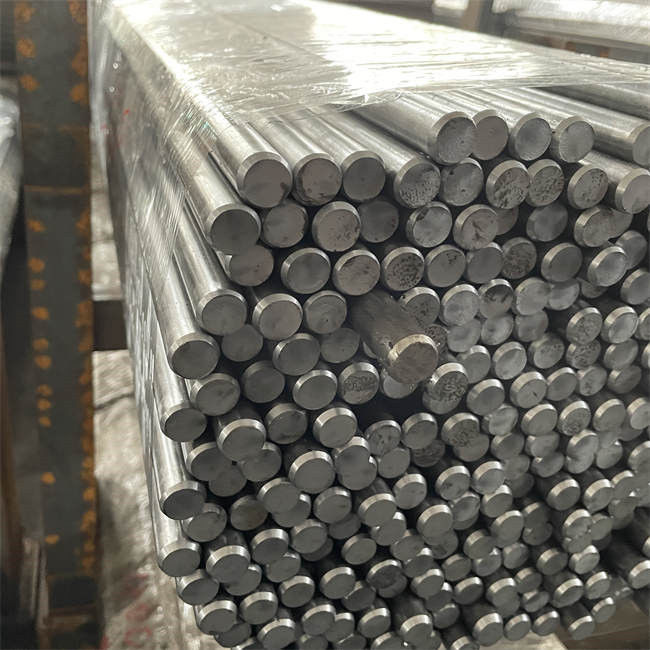

Supply Form & Size
| Form of Supply | Size(mm) | Length(mm) |
| Round bar | 6.0mm-1200mm | 2.5m-10m |
Chemical Composition&Related Specifications
| Grade | C | Si | Mn | S | P | Cr | Ni | Cu |
| 100CrMnSi6-4 | 0.95-1.05 | 0.40-0.65 | 0.90-1.20 | ≤0.020 | ≤0.027 | 1.30-1.65 |
≤0.30 |
≤0.25 |
Brand comparison table
| AISI/SAE | DIN/EN | BS | JIS/KS | China |
| / | 100CrMnSi6-4 | 100CrMnSi6-4 | / | GCr15SiMn |
Mechanical Property
|
tensile strength σb (MPa) |
1831 |
|
Impact energy Akv (J) |
23 |
|
hardness |
65HRC |
| Heat treatment specificatio | 830～840℃quench,Oil cooling ;160℃tempering3h. |
| Metallographic structur | Tempered martensit |
