Name: |

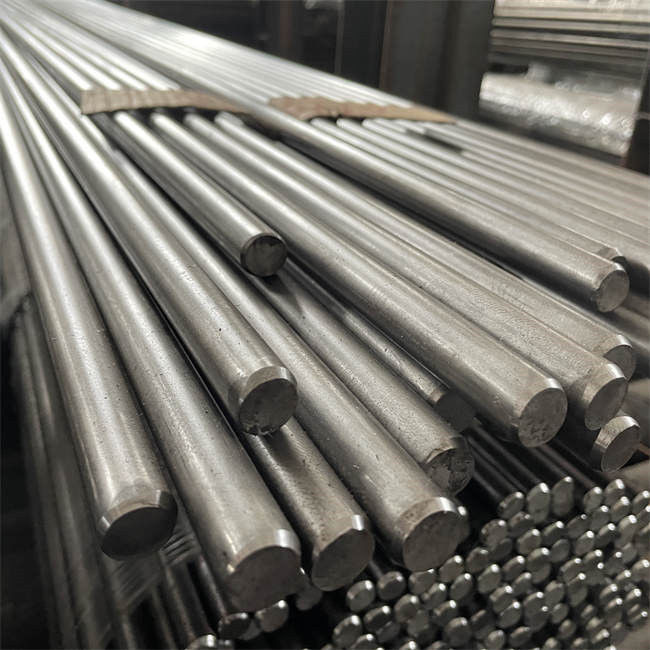

ASTM1117 Free Cutting Steel Bar Bright Round Bar |
Material: |
ASTM 1117 |
Diameter: |
6.0mm-120mm |
Length: |
2.5m-6m |
Type: |
Bright Round Bar |
Application: |
Widely Used |
Name: |
ASTM1117 Free Cutting Steel Bar Bright Round Bar |
Material: |
ASTM 1117 |
Diameter: |
6.0mm-120mm |
Length: |
2.5m-6m |
Type: |
Bright Round Bar |
Application: |
Widely Used |
1117 is the American standard ASTM standard free cutting steel. Good precision, easy cutting, can greatly improve the service life of the tool, reduce the processing time, machinability significantly improve efficiency. 1117 free-cutting steel by increasing the sulfur and manganese content in the steel, forming a large number of manganese sulfide inclusions, iron filings are easy to break when cutting, can improve the surface quality of parts, and can be processed at a faster speed and deeper feed volume, thereby improving production efficiency and saving production costs.
Supply Form & Size
| Form of Supply | Size(mm) | Length(mm) |
| Round bar | 6.0mm-120mm | 2.5m-6m |
Chemical Composition&Related Specifications
| Grade | C | Si | Mn | S | P |
| 1117 | 0.14~0.20 | ≤0.15 | 1.00~1.30 | 0.08~0.13 | ≤0.04 |
Brand comparison table
| AISI/SAE | DIN/EN | BS | JIS/KS | China |
| 1117 | 15SMn13(1.0725) | 15SMn13(1.0725) | SUM32 | Y20 |
Mechanical Property
|
tensile strength σb (MPa) |
390~540 |
|
elongation δ5 (%) |
≥22 |
|
Reduction of area ψ (%) |
≥36 |
