Product Details
Place of Origin: China
Brand Name: Zhanlu
Payment & Shipping Terms
Minimum Order Quantity: Consultation
Price: Consultation
Packaging Details: Conventional packaging
Delivery Time: 5-8Workdays
Payment Terms: L/C, T/T
Supply Ability: Consulting service
Name: |
Die Steel Bar SKD11 |
Diameter: |
6.0mm-500mm |
Material: |
SKD11 |
Type: |
JIS/KS SKD11 |
Length: |
2.5m-10m |
Application: |
Suitable For Tool Steel With Complex Deformation, Various Kinds Of Cold Stamping Dies With High Wear Resistance And Long Service Life, Cold Cutting Blades, And Thread Rolling Plates; Cold Extrusion Forming, Drawing Film, Stainless Steel Sheet And Balance C |
Name: |
Die Steel Bar SKD11 |
Diameter: |
6.0mm-500mm |
Material: |
SKD11 |
Type: |
JIS/KS SKD11 |
Length: |
2.5m-10m |
Application: |
Suitable For Tool Steel With Complex Deformation, Various Kinds Of Cold Stamping Dies With High Wear Resistance And Long Service Life, Cold Cutting Blades, And Thread Rolling Plates; Cold Extrusion Forming, Drawing Film, Stainless Steel Sheet And Balance C |
SKD11 (alloy tool steel): High-Carbon High-Chromium alloy steel with high hardness (appropriate toughness) and tempering hardening effect. Examples like stamping mold, plastic mold and other multi-function items.After quenching, residual austenite is about 13% to 20%.
Equivalent Grades: GB Cr12MoV, JIS SKD11, AISI/SAE D3, DIN 2X165CrMoV12. SKD11 is the tool steel, die steel, and high carbon steel possessing high hardness, strength and wear resistance.
Supply Form & Size
| Form of Supply | Size(mm) | Length(mm) |

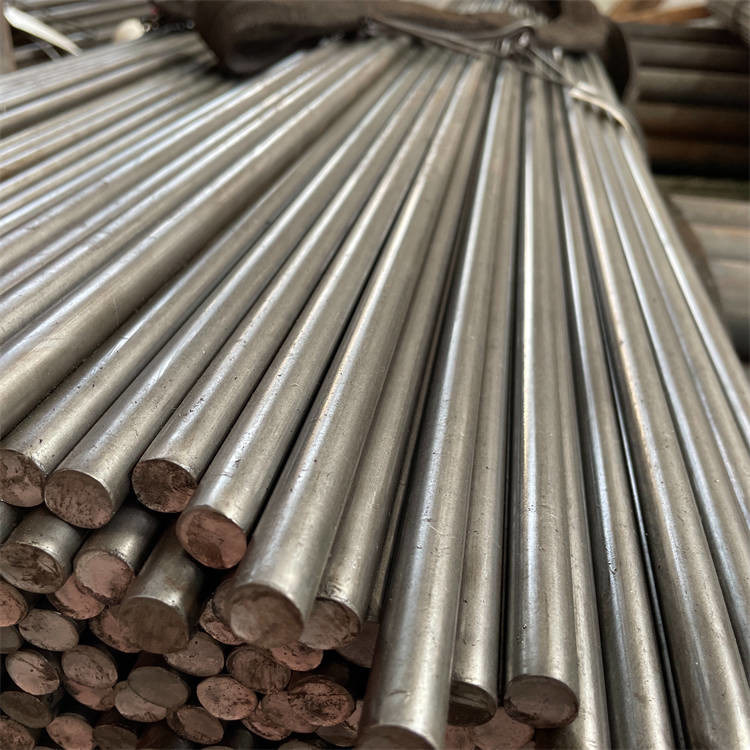

| Round bar | 6.0mm-500mm | 2.5m-10m |
Chemical Composition&Related Specifications
| Grade | C | Mn | Cr | Ni | Mo | V | Cu | P | S | Si |
| SKD11 | 1.4~1.6 | ≤0.60 | 11.0-13.0 | ≤0.50 | 0.80-1.20 | 0.20-0.50 | ≤0.20 | ≤0.030 | ≤0.030 | ≤0.40 |
Brand comparison table
| AISI/SAE | DIN/EN | BS | JIS/KS | China |
| / | / | / | SKD11 | Cr12MoV |
