Product Details
Place of Origin: China
Brand Name: Zhanlu
Model Number: 60Si2Mn
Payment & Shipping Terms
Minimum Order Quantity: Consultation
Price: Consultation
Packaging Details: Conventional packaging
Delivery Time: 5-8Workdays
Payment Terms: L/C, T/T
Supply Ability: Consulting service
Name: |

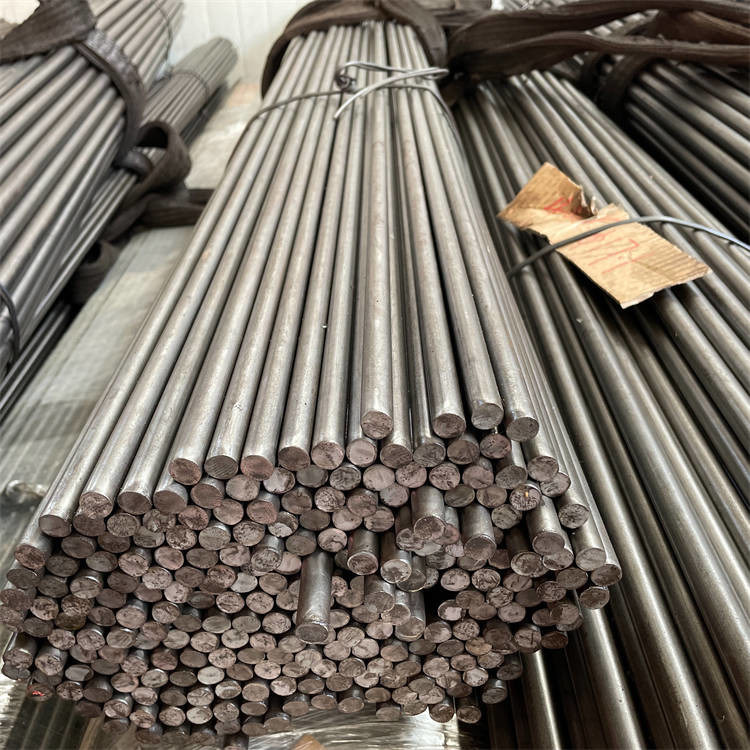

60Si2Mn Spring Steel Round Bar |
Material: |
60Si2Mn |
Diameter: |
6.0mm-1200mm |
Length: |
2.5m-10m |
Type: |
Bright Round Bar |
Application: |
Spring |
Standard: |
GB/T1222-2007 |
Name: |
60Si2Mn Spring Steel Round Bar |
Material: |
60Si2Mn |
Diameter: |
6.0mm-1200mm |
Length: |
2.5m-10m |
Type: |
Bright Round Bar |
Application: |
Spring |
Standard: |
GB/T1222-2007 |
60Si2Mn spring steel is a widely used silicon manganese spring steel with slightly higher strength, elasticity, and hardenability than 55Si2Mn. 60Si2Mn spring steel is used in the industry to produce flat springs that can withstand large loads or spiral springs with a wire diameter of less than 30mm. It is also suitable for producing heat resistant springs in non corrosive media with a working temperature of less than 250 ℃, as well as large and important coil springs that can withstand alternating loads and work under high stress, as well as automotive shock absorption systems.
Supply Form & Size
| Form of Supply | Size(mm) | Length(mm) |
| Round bar | 6.0mm-1200mm | 2.5m-10m |
Chemical Composition&Related Specifications
| Grade | C | Si | Mn | S | P | Cr | Ni | Cu |
| 60Si2Mn | 0.56～0.64 | 1.50～2.00 | 0.60～0.90 | ≤0.035 | ≤0.035 | ≤0.035 | ≤0.035 | ≤0.035 |
Brand comparison table
| AISI/SAE | DIN/EN | BS | JIS/KS | China |
| 9260 | 61SiCr7(1.7108) | 61SiCr7(1.7108) | SUP6,SUP7 | 60Si2Mn |
