Product Details
Place of Origin: China
Brand Name: Zhanlu
Model Number: Round Bar
Payment & Shipping Terms
Minimum Order Quantity: Consultation
Price: Consultation
Packaging Details: Conventional packaging
Delivery Time: 5-8 workdays
Payment Terms: L/C, T/T
Supply Ability: Consulting service
Name: |

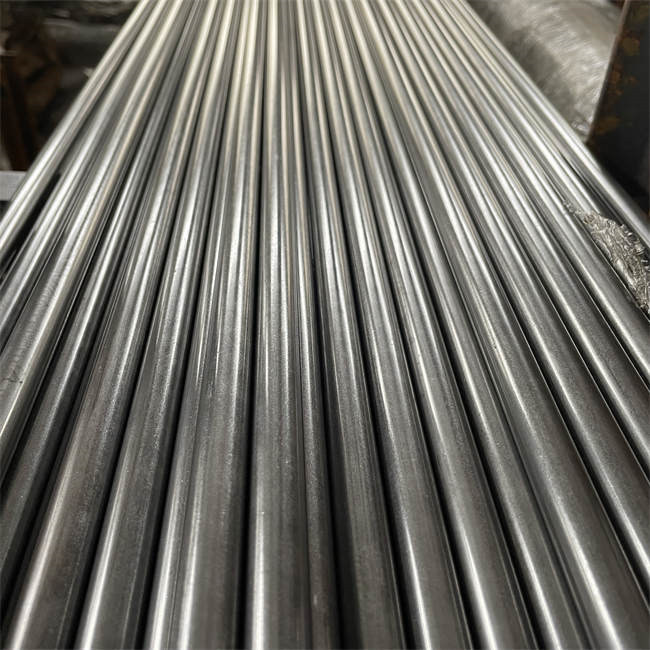

30CrMnSi Alloy Structural Steel 6.0mm-1200mm |
Length: |
2.5m-10m |
Material: |
30CrMnSi |
Diameter: |
6.0mm-1200mm |
Characteristic: |
High Antioxidant And Thermal Strength |
Shape: |
Round Bar |
Name: |
30CrMnSi Alloy Structural Steel 6.0mm-1200mm |
Length: |
2.5m-10m |
Material: |
30CrMnSi |
Diameter: |
6.0mm-1200mm |
Characteristic: |
High Antioxidant And Thermal Strength |
Shape: |
Round Bar |
High strength quenched and tempered structural steel. It has high strength and toughness, high hardenability, medium cold deformation plasticity, and good machinability. There is a tendency of temper brittleness, and the transverse impact toughness is poor. The welding performance is good, but when the thickness is greater than 3mm, it should be preheated to 150 ℃ first, and heat treatment is required after welding. Use after general tempering
Supply Form & Size
| Form of Supply | Size(mm) | Length(mm) |
| Round bar | 6.0mm-1200mm | 2.5m-10m |
Chemical Composition&Related Specifications
| Grade | C | Si | Mn | Cr |
| 30CrMnSi | 0.28～0.34 | 0.90～1.20 | 0.80～1.10 | 0.80～1.10 |
Brand comparison table
| AISI/SAE | DIN/EN | BS | JIS/KS | China |
| / | / | / | / | 30CrMnSi |
Mechanical Property
| tensile strength σb (MPa) |
≥1100 |
| yield strength σs (MPa |
≥800 |
| elongation δ5 (%) |
≥10 |
| Reduction of area ψ (%) |
≥45 |
| Impact absorbed energy(Aku2/J) |
≥50 |
| Brinell hardness(HBS100/3000) | ≤229 |
