Product Details
Place of Origin: China
Brand Name: Zhanlu
Model Number: Round Bar
Payment & Shipping Terms
Minimum Order Quantity: Consultation
Price: Consultation
Packaging Details: Conventional packaging
Delivery Time: 5-8 workdays
Payment Terms: L/C, T/T
Supply Ability: Consulting service
Name: |
AISI5140 Alloy Structural Steel |
Length: |
2.5m-10m |
Material: |
AISI5140 |
Diameter: |
6.0mm-1200mm |
Characteristic: |
Very High Strength And Toughness |
Shape: |
Round Bar |
Name: |
AISI5140 Alloy Structural Steel |
Length: |
2.5m-10m |
Material: |
AISI5140 |
Diameter: |
6.0mm-1200mm |
Characteristic: |
Very High Strength And Toughness |
Shape: |
Round Bar |
5140 steel is medium carbon modulated steel and cold heading die steel. The steel is inexpensive and easy to process. After proper heat treatment, it can obtain certain toughness, plasticity and wear resistance. Normalizing can promote the spheroidization of the structure and improve the cutting performance of the blank with hardness less than 160HBS. Tempered at 550~570 ℃, the steel has the best comprehensive mechanical properties. The hardenability of this steel is higher than that of S45C steel, and it is suitable for surface hardening treatment such as high-frequency quenching and flame quenching.

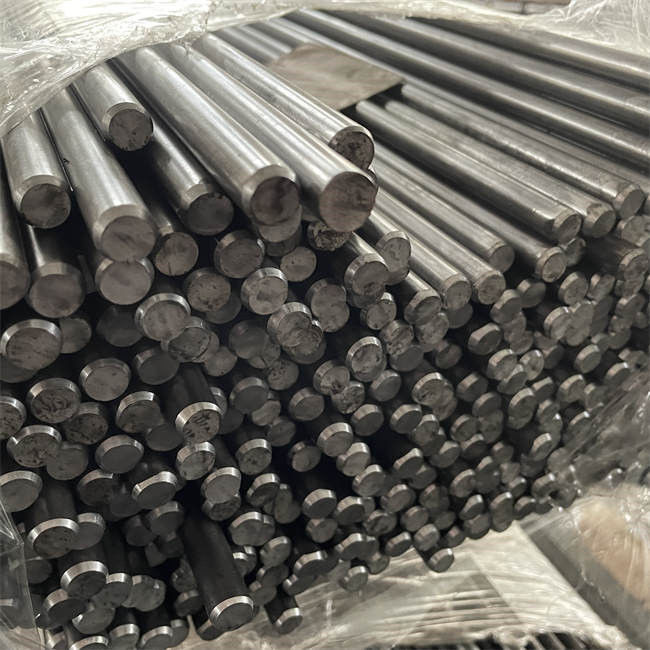

Supply Form & Size
| Form of Supply | Size(mm) | Length(mm) |
| Round bar | 6.0mm-1200mm | 2.5m-10m |
Chemical Composition&Related Specifications
| Grade | C | Si | Mn | P | S | Cr |
| 5140 | 0.38-0.43 | 0.15～0.35 | 0.70～0.90 | ≤0.035 | ≤0.040 | 0.70～0.90 |
Brand comparison table
| AISI/SAE | DIN/EN | BS | JIS/KS | China |
| 5140 | 41Cr4(1.7035) | 41Cr4(1.7035) | SCr440 | 40Cr |
