Product Details
Place of Origin: China
Brand Name: Zhanlu
Model Number: 61SiCr7
Payment & Shipping Terms
Minimum Order Quantity: Consultation
Price: Consultation
Packaging Details: Conventional packaging
Delivery Time: 5-8Workdays
Payment Terms: L/C, T/T
Supply Ability: Consulting service
Name: |

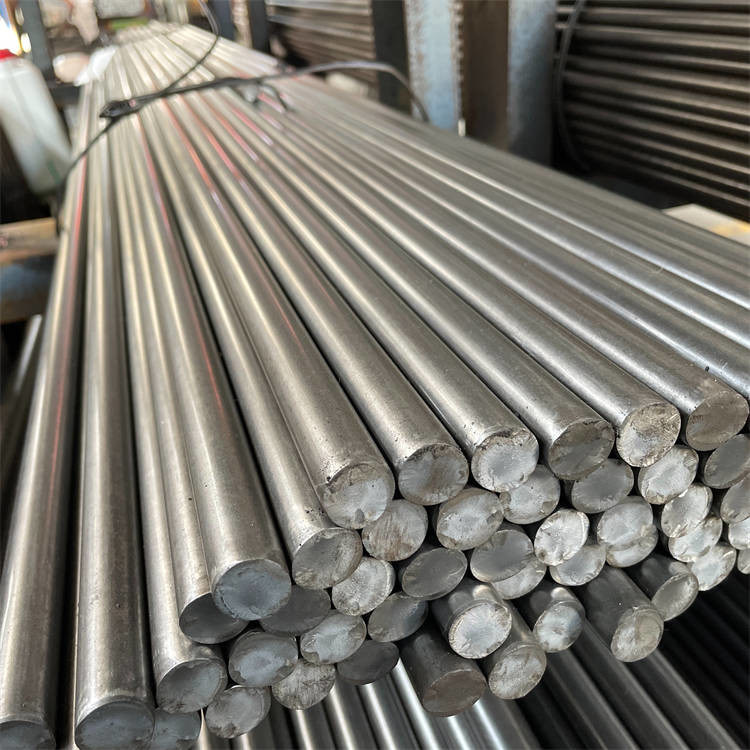

61SiCr7 Spring Steel Round Bar |
Material: |
61SiCr7 |
Diameter: |
6.0mm-1200mm |
Length: |
2.5m-10m |
Type: |
Bright Round Bar |
Application: |
Spring |
Standard: |
9260 |
Name: |
61SiCr7 Spring Steel Round Bar |
Material: |
61SiCr7 |
Diameter: |
6.0mm-1200mm |
Length: |
2.5m-10m |
Type: |
Bright Round Bar |
Application: |
Spring |
Standard: |
9260 |
61SiCr7 (1.7108) is a widely used silicon manganese spring steel, slightly higher than 55SI2MN. Suitable for the railway vehicle and automobile tractor industries, it can produce a large number of springs or screw springs, a large number of springs or screw springs, or a diameter of less than 30mm. It is also suitable for heat resistant springs with non corrosive media at production temperatures below 250 °. And large important volume springs that work under high stress.
Supply Form & Size
| Form of Supply | Size(mm) | Length(mm) |
| Round bar | 6.0mm-1200mm | 2.5m-10m |
Chemical Composition&Related Specifications
| Grade | C | Si | Mn | S | P | Cr | Ni |
| 61SiCr7(1.7108) | 0.57～0.65 | 1.50～2.00 | 0.70～1.00 | ≤0.025 | ≤0.045 | ≤0.025 | ≤0.035 |
Brand comparison table
| AISI/SAE | DIN/EN | BS | JIS/KS | China |
| 9260 | 61SiCr7(1.7108) | 61SiCr7(1.7108) | SUP6,SUP7 | 60Si2Mn |
